Platform
Scalpel HT
-
Model Name
Scalpel HT Carbon 4
-
Model Code
C25401U
-
Frame
Scalpel HT Carbon, Proportional Response Design, PF30-83, tapered head tube, 55mm chainline, Speed Release 12mm thru axle w/UDH hanger
-
Fork
RockShox SID SL , 100mm, Debonair, remote lockout, 15x110mm thru-axle, tapered steerer, 44mm offset
-
Headset
Integrated, 1-1/8 to 1.5", sealed angular contact bearings
-

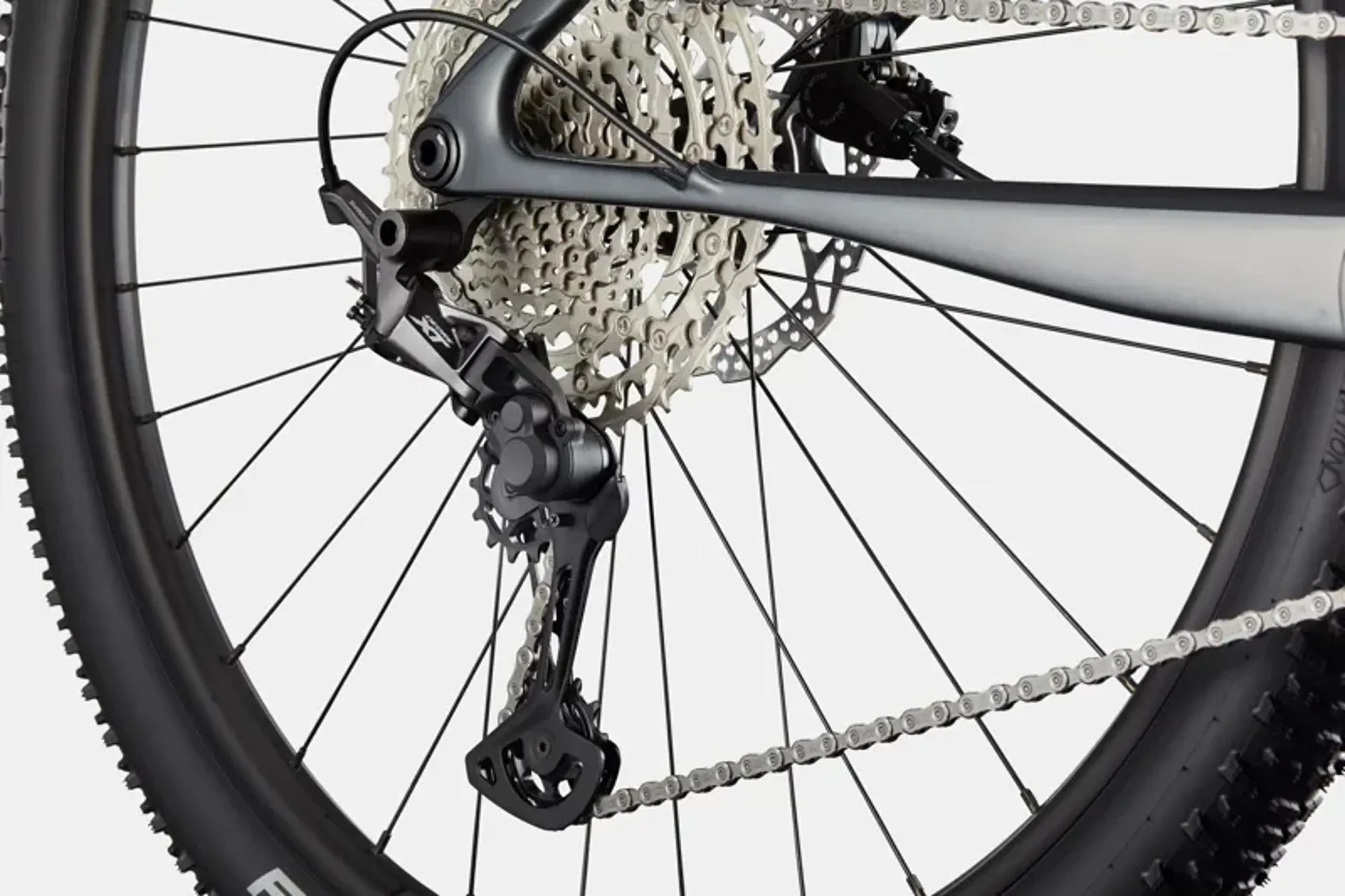

Rear Derailleur
Shimano XT
-
Shifters
Shimano Deore M6100, 12-speed
-
Chain
Shimano Deore, 12-speed
-

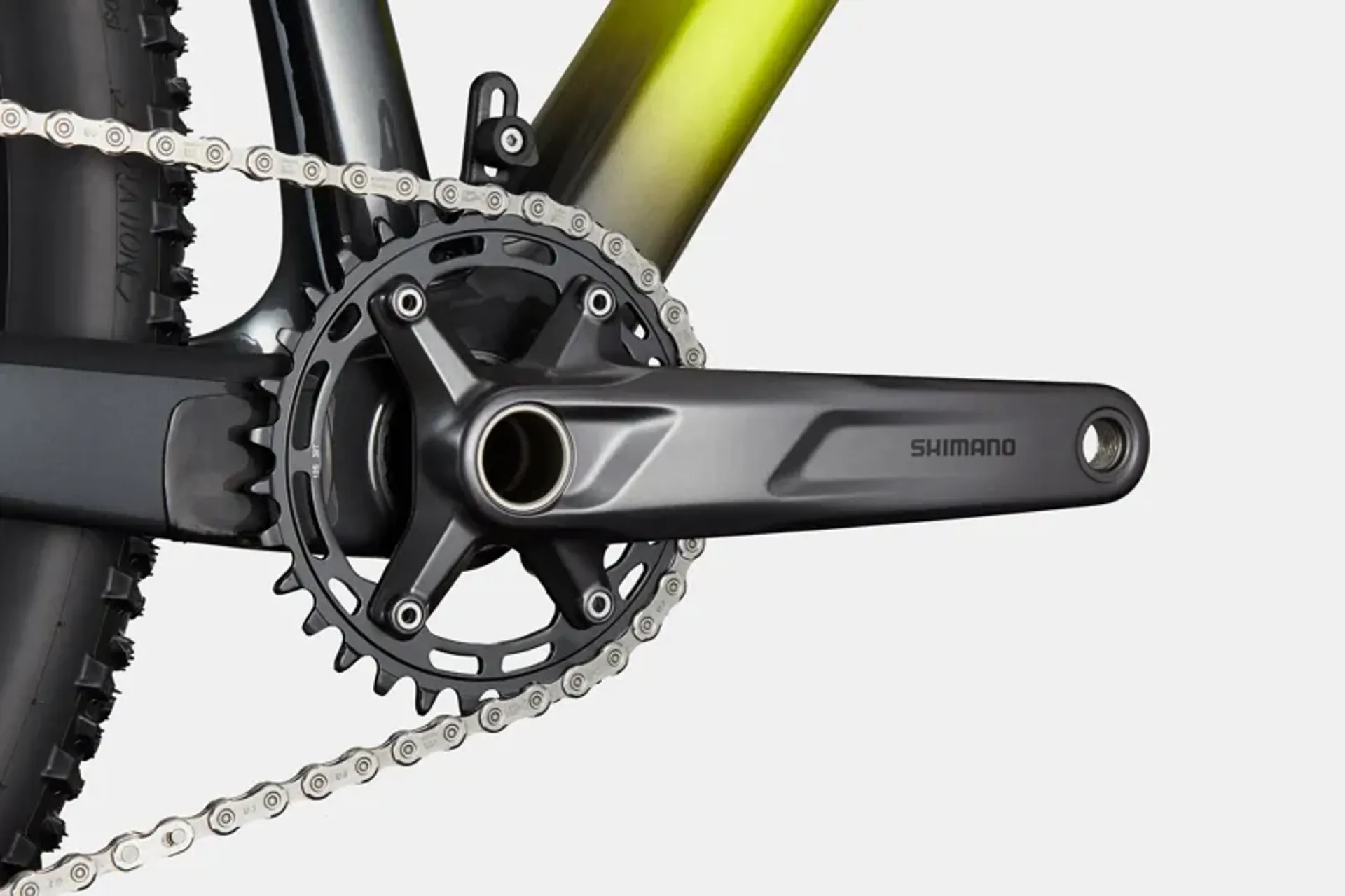

Crank
Shimano M5121, 30T, 55mm chainline
-
Rear Cogs
Shimano Deore M6100, 10-51, 12-speed
-
Bottom Bracket
Cannondale Alloy PressFit 30 - 24mm
-

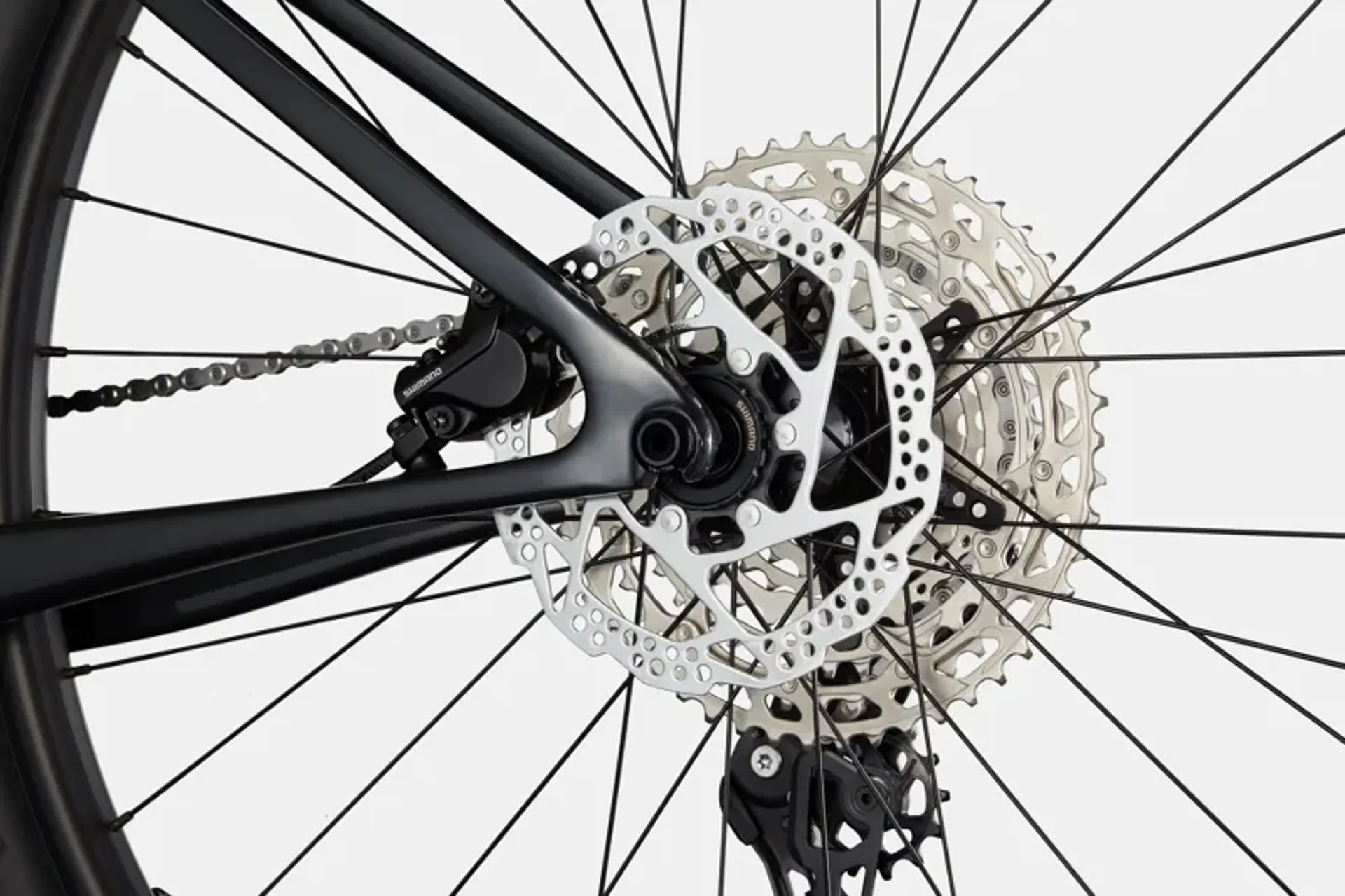

Brakes
Shimano MT501 hydraulic disc, 160/160mm RT54 rotors
-
Brake Levers
Shimano MT500 hydraulic disc
-
Rims
WTB STX i23, 32h, tubeless ready
-
Spokes
DT Swiss Champion 2.0
-
Tire Size
2.25
-
Wheel Size
29
-
Hubs
(F) Shimano MT410, 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle
-
Tires
(F) Schwalbe Racing Ray EVO, 29x2.25", Twinskin, tubeless ready, (R) Schwalbe Racing Ralph EVO, 29x2.25", SnakeSkin, Addix compound, tubeless ready
-
Front Tire
Schwalbe Racing Ray EVO, 29x2.25", Twinskin, tubeless ready
-
Rear Tire
Schwalbe Racing Ray EVO, 29x2.25", Twinskin, tubeless ready
-

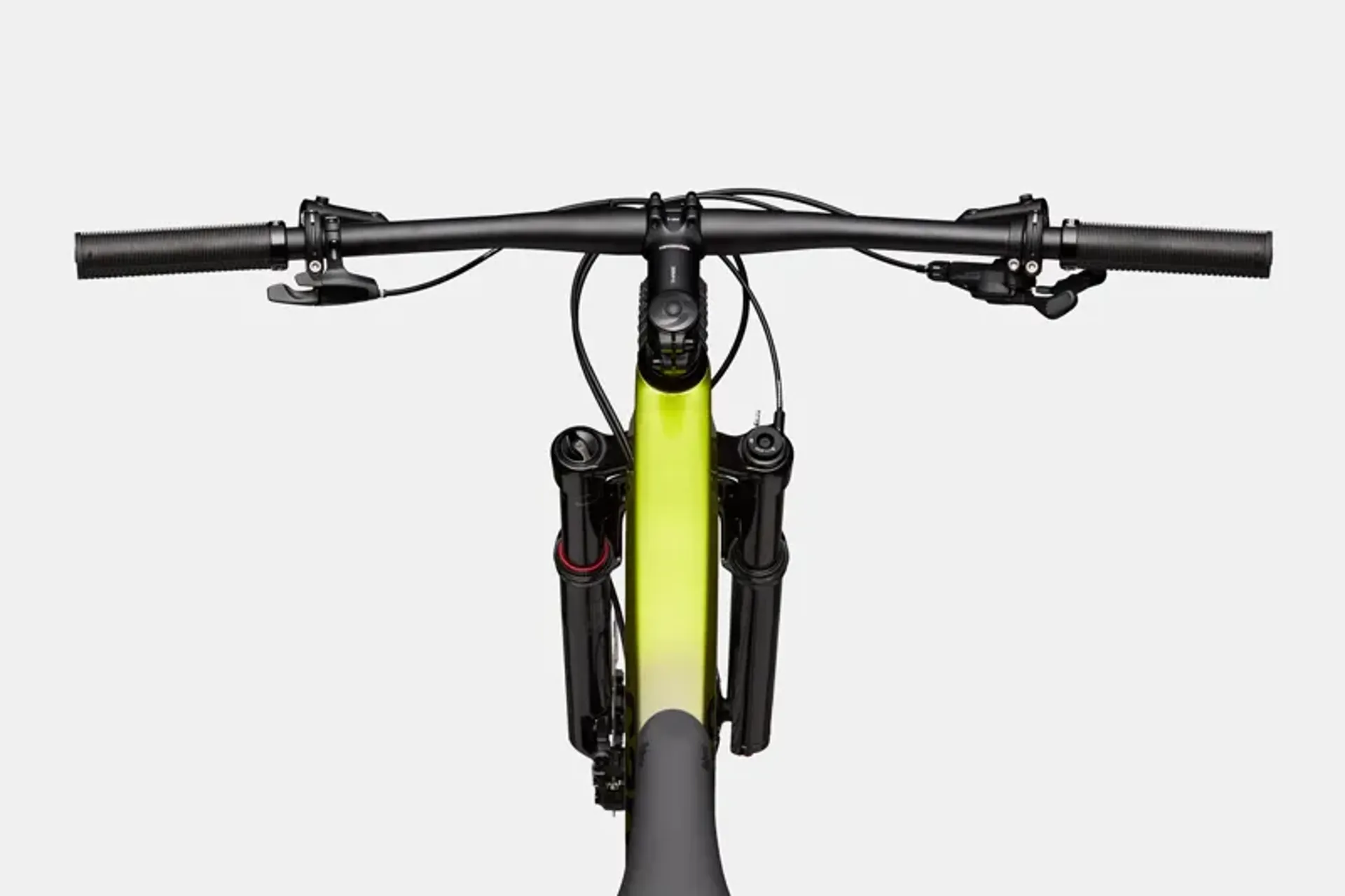

Handlebar
Cannondale 2 Flat, butted 2014 Alloy, 31.8mm, 3° rise, 8° sweep, 760mm
-
Stem
Cannondale 2, 6061 Alloy, 31.8, 7°
-
Grips
Cannondale TrailShroom
-
Saddle
Cannondale Scoop Shallow Sport, steel rails
-
Seatpost
C3 Alloy, 27.2x400mm
