Platform
Scalpel HT
-
Model Name

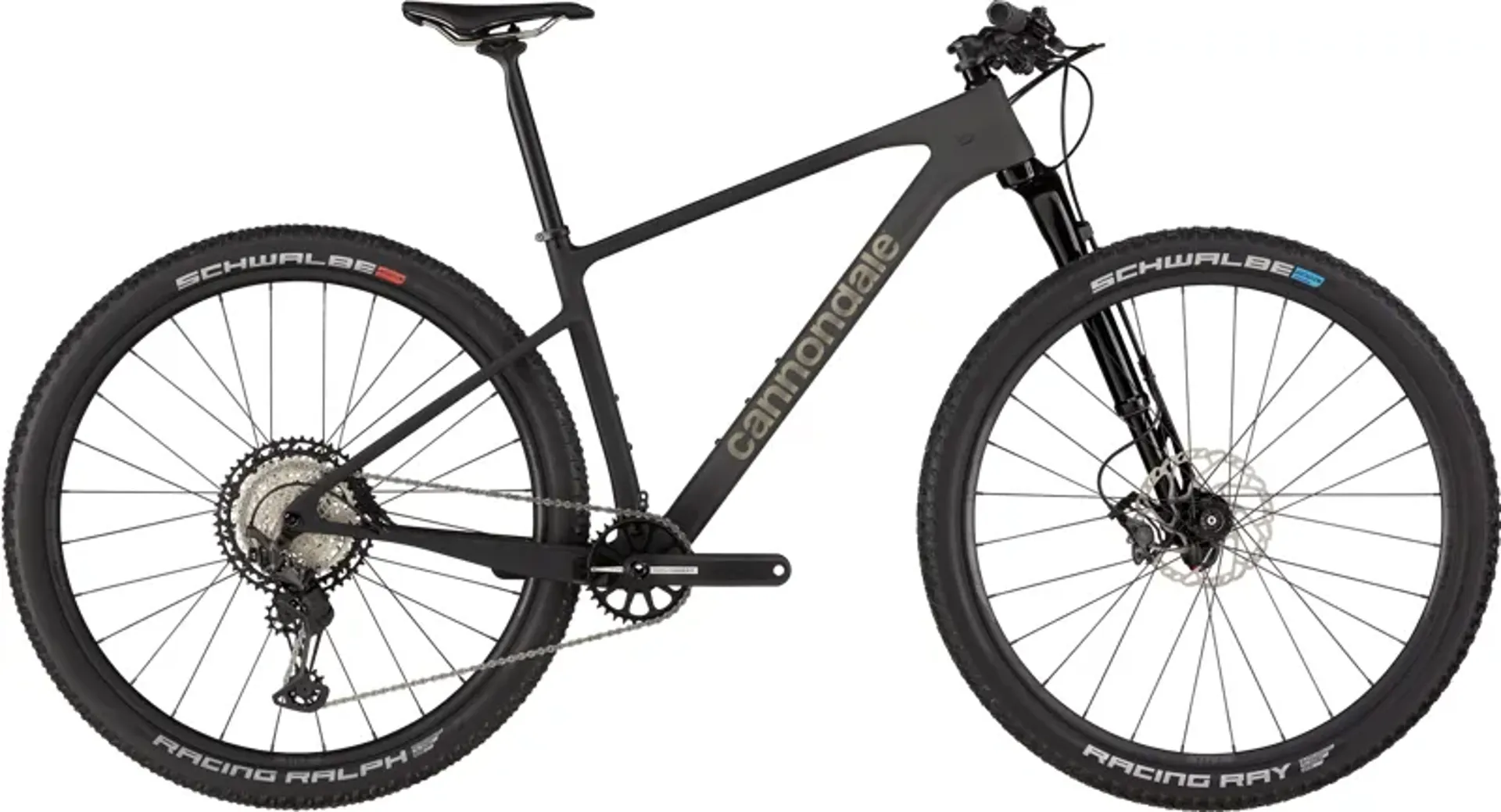

Scalpel HT Carbon 2
-
Model Code
C25231U
-
Frame
Scalpel HT Carbon, Proportional Response Design, PF30-83, tapered head tube, 55mm chainline, Speed Release 12mm thru axle w/UDH hanger
-
Fork
Lefty Ocho, 100mm, Chamber Damper with remote lockout, OppO Spring System, tapered steerer, 55mm offset
-
Headset
Integrated, 1-1/8 to 1.5", sealed angular contact bearings
-
Rear Derailleur
Shimano XT
-
Shifters
Shimano XT, 12-speed
-
Chain
Shimano SLX, 12-speed
-
Crank
HollowGram, BB30 83MTB, OPI SpideRing, 34T, 55mm chainline
-
Rear Cogs
Shimano XT, 10-51, 12-speed
-
Bottom Bracket
Cannondale Alloy PressFit30
-
Brakes
Shimano XT hydraulic disc, 180/160mm XT rotors
-
Brake Levers
Shimano XT hydraulic disc
-
Rims
Stan's NoTubes Crest MK4, 28h, tubeless ready
-
Spokes
DT Swiss Competition
-
Tire Size
2.25
-
Wheel Size
29
-
Hubs
(F) HollowGram Lefty 60 / (R) Shimano7110, 12x148mm thru-axle
-
Tires
(F) Schwalbe Racing Ray EVO, 29x2.25", SnakeSkin, Addix Speedgrip, tubeless ready, (R) Schwalbe Racing Ralph EVO, 29x2.25", SnakeSkin, Addix Speed, tubeless ready
-
Front Tire
Schwalbe Racing Ray EVO, 29x2.25", SnakeSkin, Addix Speedgrip, tubeless ready
-
Rear Tire
Schwalbe Racing Ralph EVO, 29x2.25", SnakeSkin, Addix Speed, tubeless ready
-
Handlebar
Cannondale 1 Flat, Carbon, 31.8mm, 9° backsweep, 760mm
-
Stem
Cannondale 3, 6061 Alloy, 31.8, 7°
-
Grips
Cannondale XC Silicone
-
Saddle
Prologo Dimension NDR, Tirox rails
-
Seatpost
Cannondale C1 Carbon, 27.2x400mm
-
Wheel Sensor
Cannondale Wheel Sensor
