Platform
Mavaro
-
Model Name

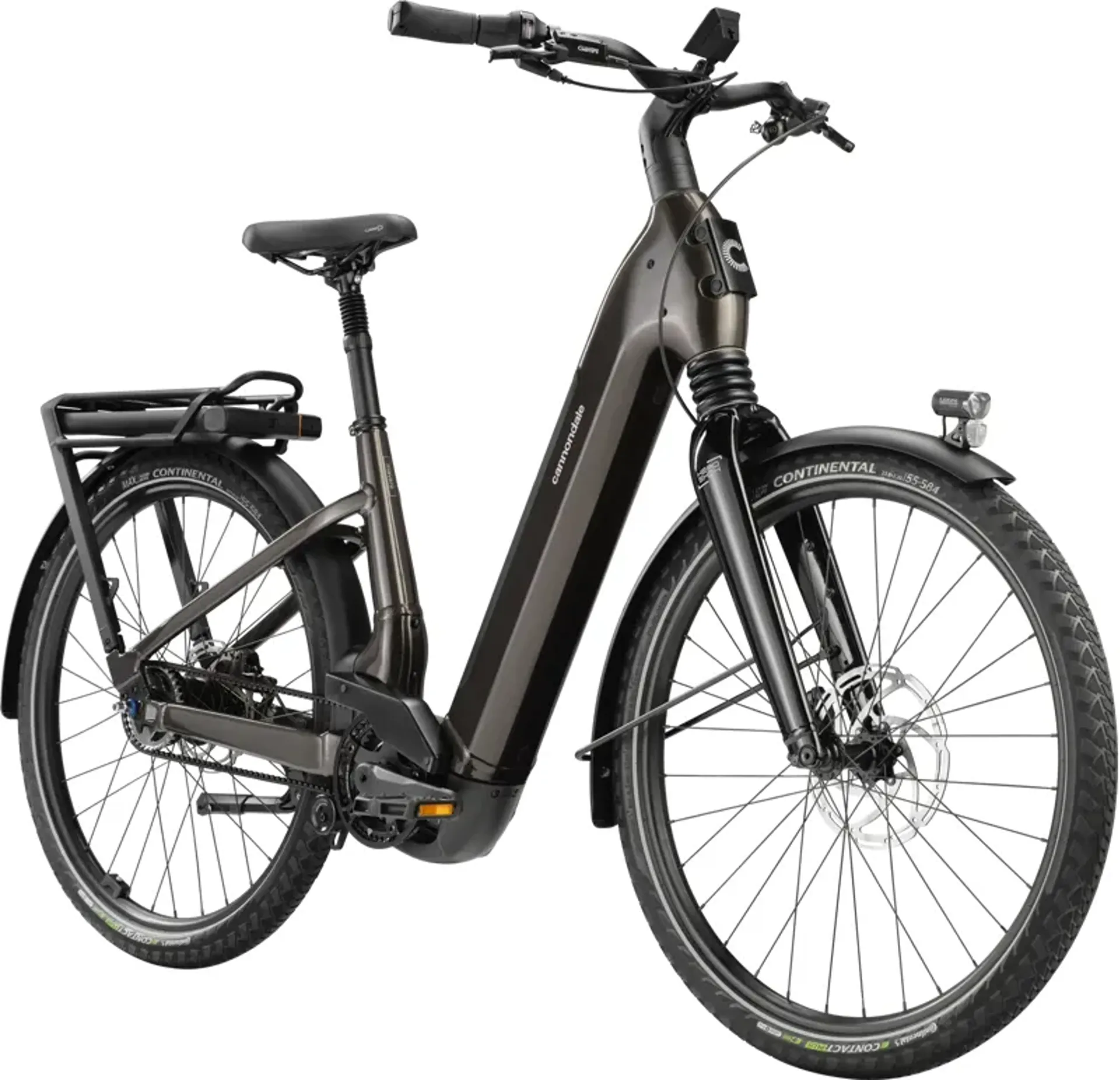

Mavaro 2 Low StepThru
-
Model Code
C64044U
-

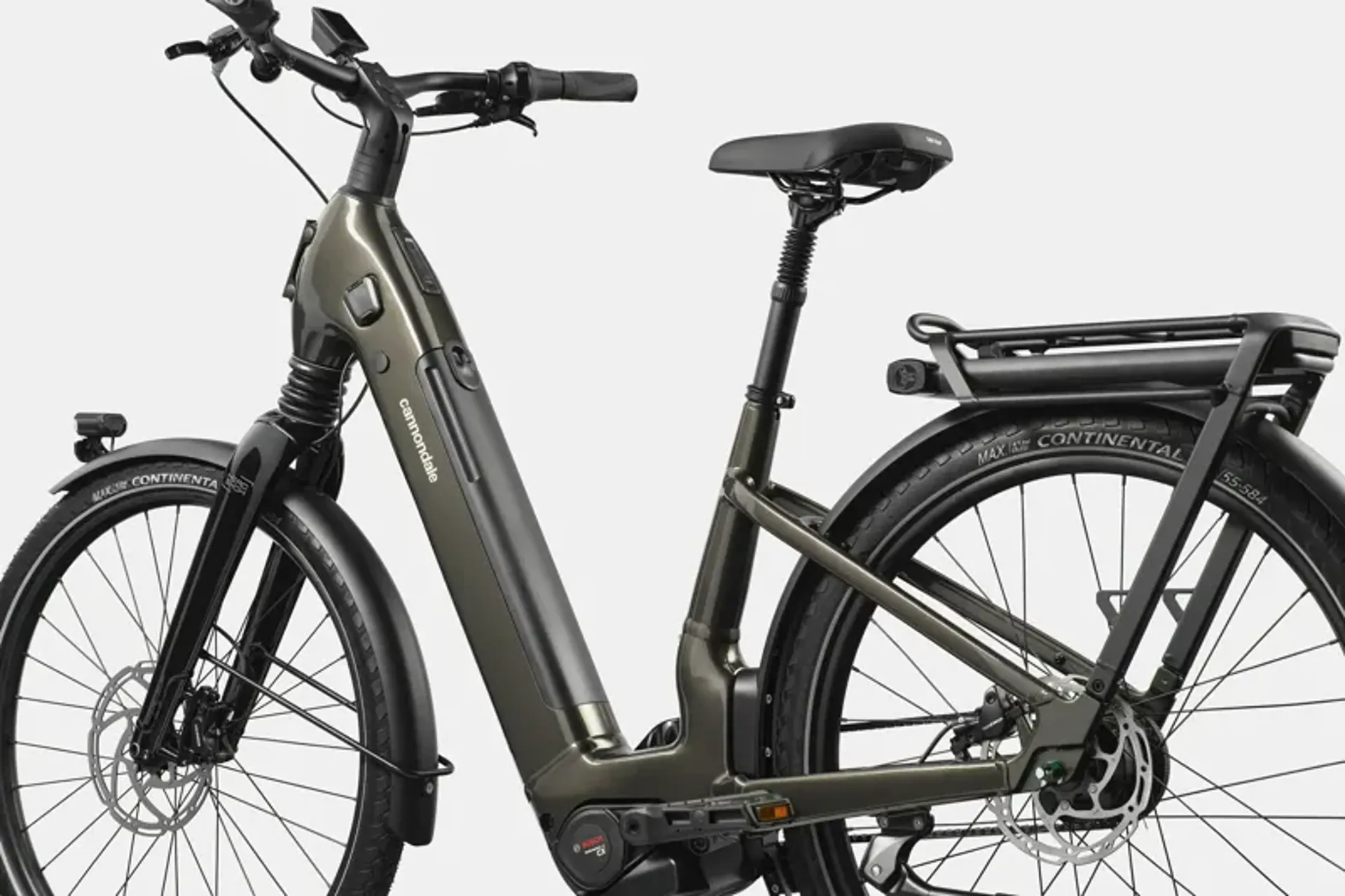

Frame
Mavaro, low step-thru, SmartForm C1 Alloy, removable 600Wh downtube battery, tapered headtube, internal cable routing, 135mm QR hub spacing, post mount disc brake, motor protection, integrated RackLock rack and fender - RackTime SnapIt 2.0 and child seat compatible
-
Fork
Cannondale HeadShok, 50mm travel, Quad Cage needle bearing internals, coil spring, twin chamber semi open-bath oil damping, post mount disc, 110x15mm thru-axle
-
Headset
Acros integrated cable routing, 1.8" sealed bearings with tapered reducers
-

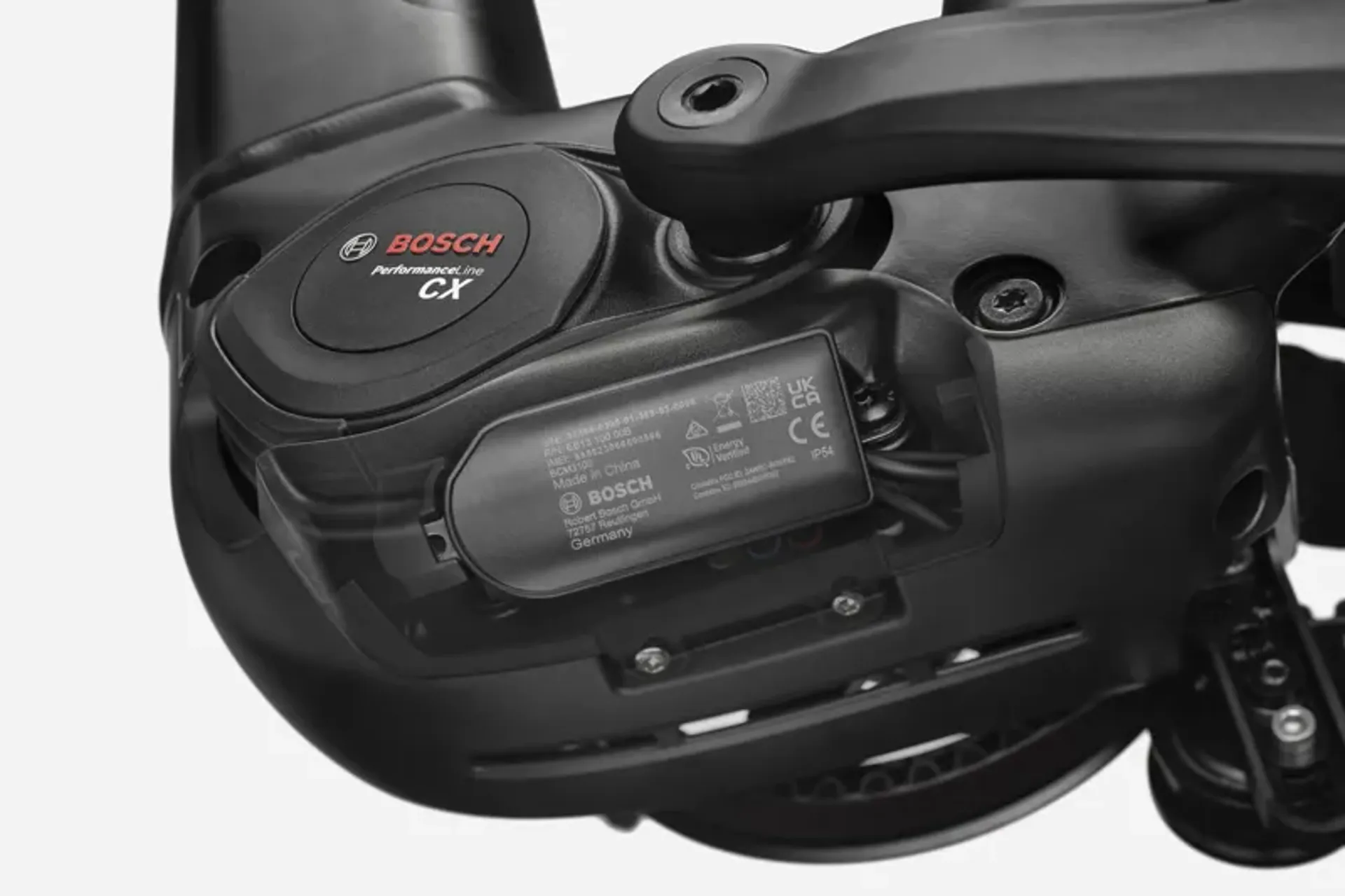

Drive Unit

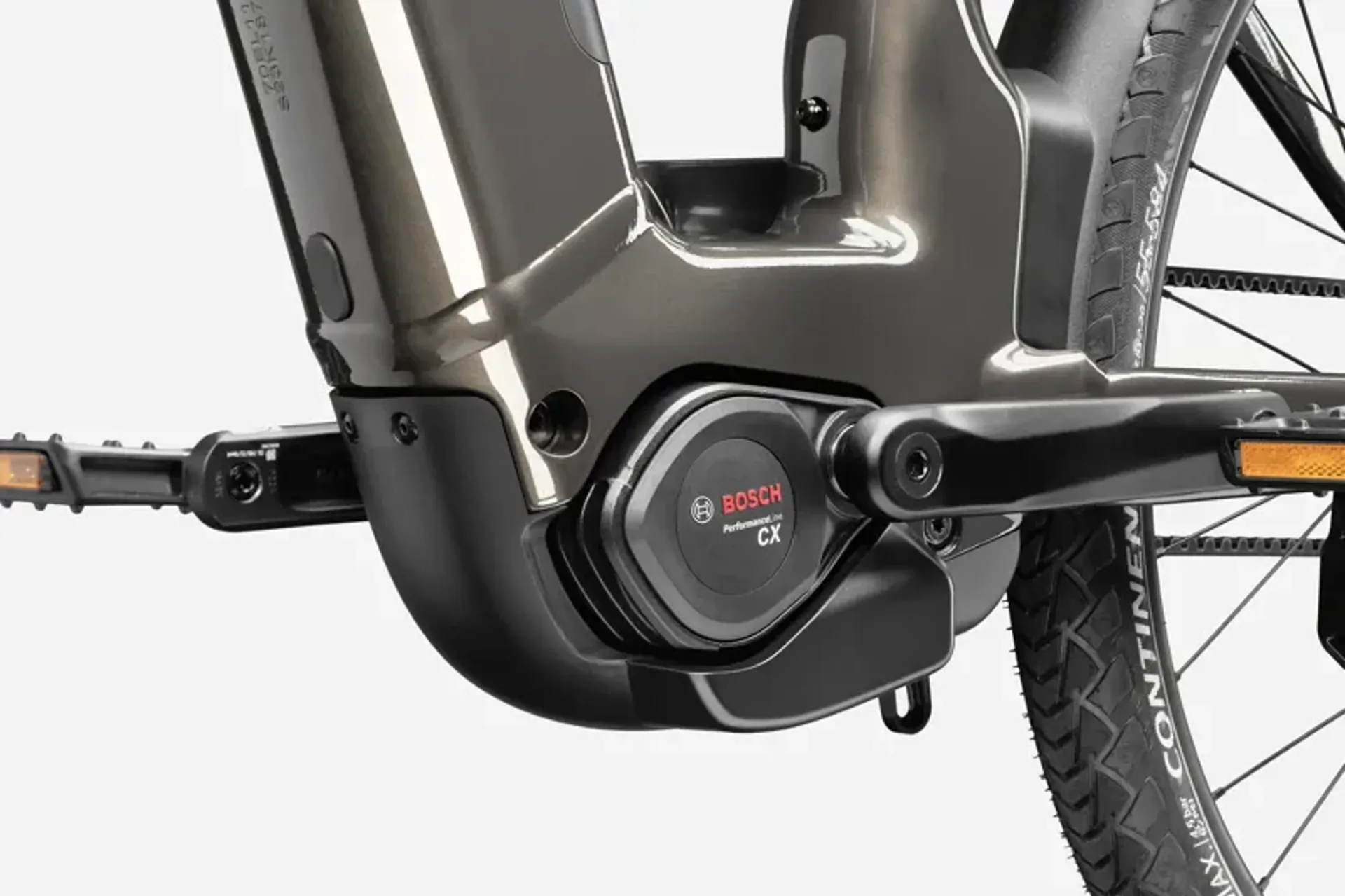

Bosch Performance Line CX 250W MY25
-
Battery
Bosch PowerTube, 600Wh
-
Charger
Bosch 4A
-

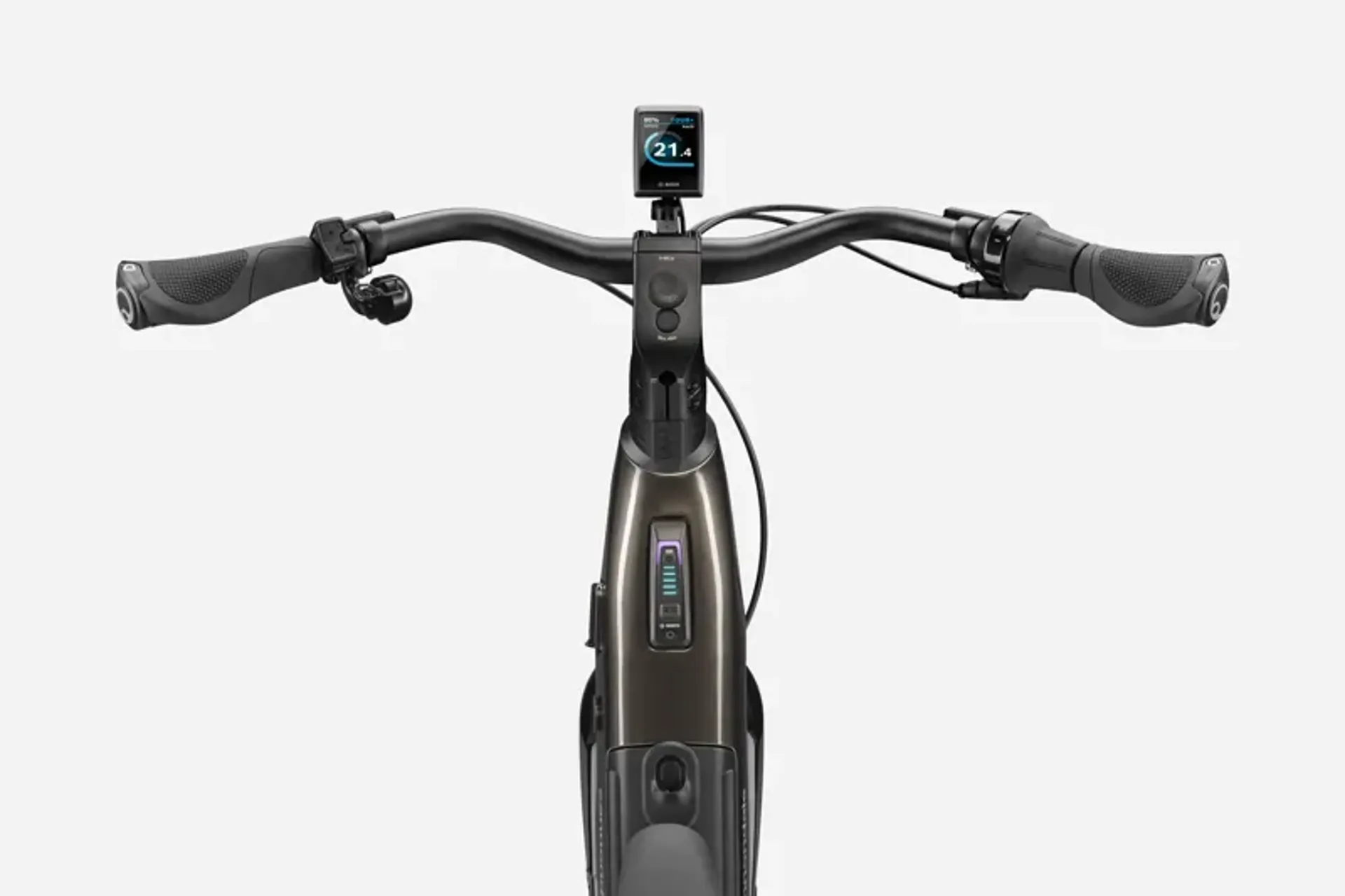

Display
Bosch Kiox 300 w/ Mini Remote & System Controller
-
Rear Derailleur

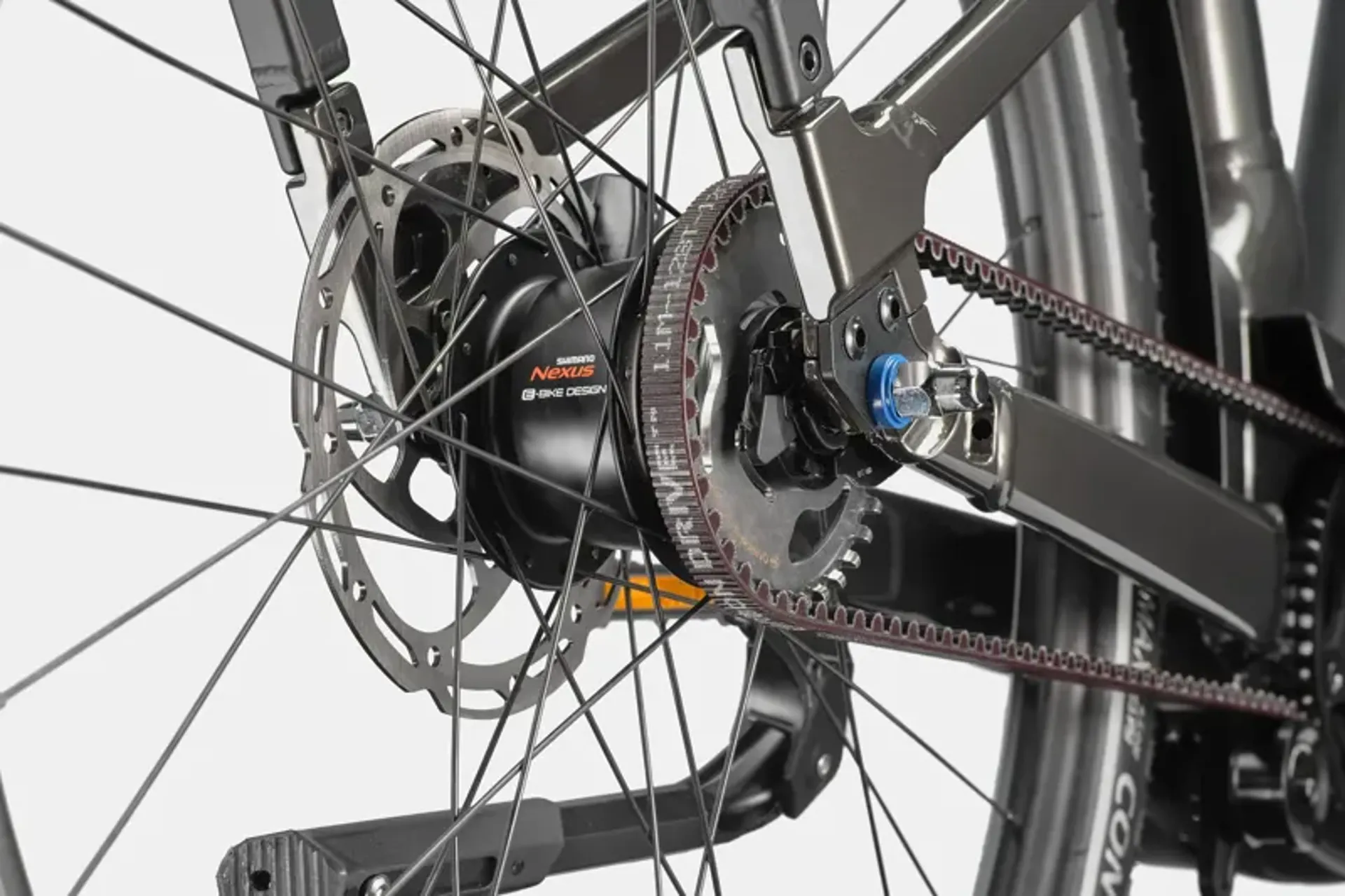

Shimano Nexus Inter-5E, 5-speed internal gear hub
-
Shifters
Shimano Nexus Revoshift, 5-speed twist shifter
-
Chain
Gates CDX high performance carbon drive belt
-
Crank
Gates Bosch E-bike, w/ 46T sprocket
-
Rear Cogs
Gates CDX, 34T
-
Brakes
Tektro HD-M530 Gemini, 4-piston hydraulic disc, 203mm TR rotor (Front), 2-piston hydraulic disc, 180mm TR rotor (Rear)
-
Brake Levers
Tektro HD-M530 Gemini hydraulic disc
-
Rims
Alloy, double wall, 32 hole, 25mm internal width, disc-specific
-
Spokes
Stainless Steel, 14g
-
Tire Size
2.2
-
Wheel Size
27.5/29
-
Hubs
(F) Shimano TC500, 15x110mm thru-axle / (R) Shimano Nexus Inter-5E, 5-speed internal gear hub
-
Tires
Continental eContact Plus w/ reflective sidewalls 27.5x2.20" 55-584 (SM, MD), 29x2.20" 55-622 (LG, XL)
-
Handlebar
Cannondale Urban Ergo Bar, 6061 Alloy, 25mm rise, 35° sweep, 0° rise, 680mm
-
Stem
Cannondale Urban w/ Intellimount, Alloy, 31.8mm clamp, 60mm, +30°, Acros ICR, w/ SP Connect SPC+ Stem Mount & Kiox mount
-
Grips
Ergon GC10
-
Saddle
Selle Royal Essenza
-
Seatpost
Linear Suspension Seatpost, 31.6, 350mm
-

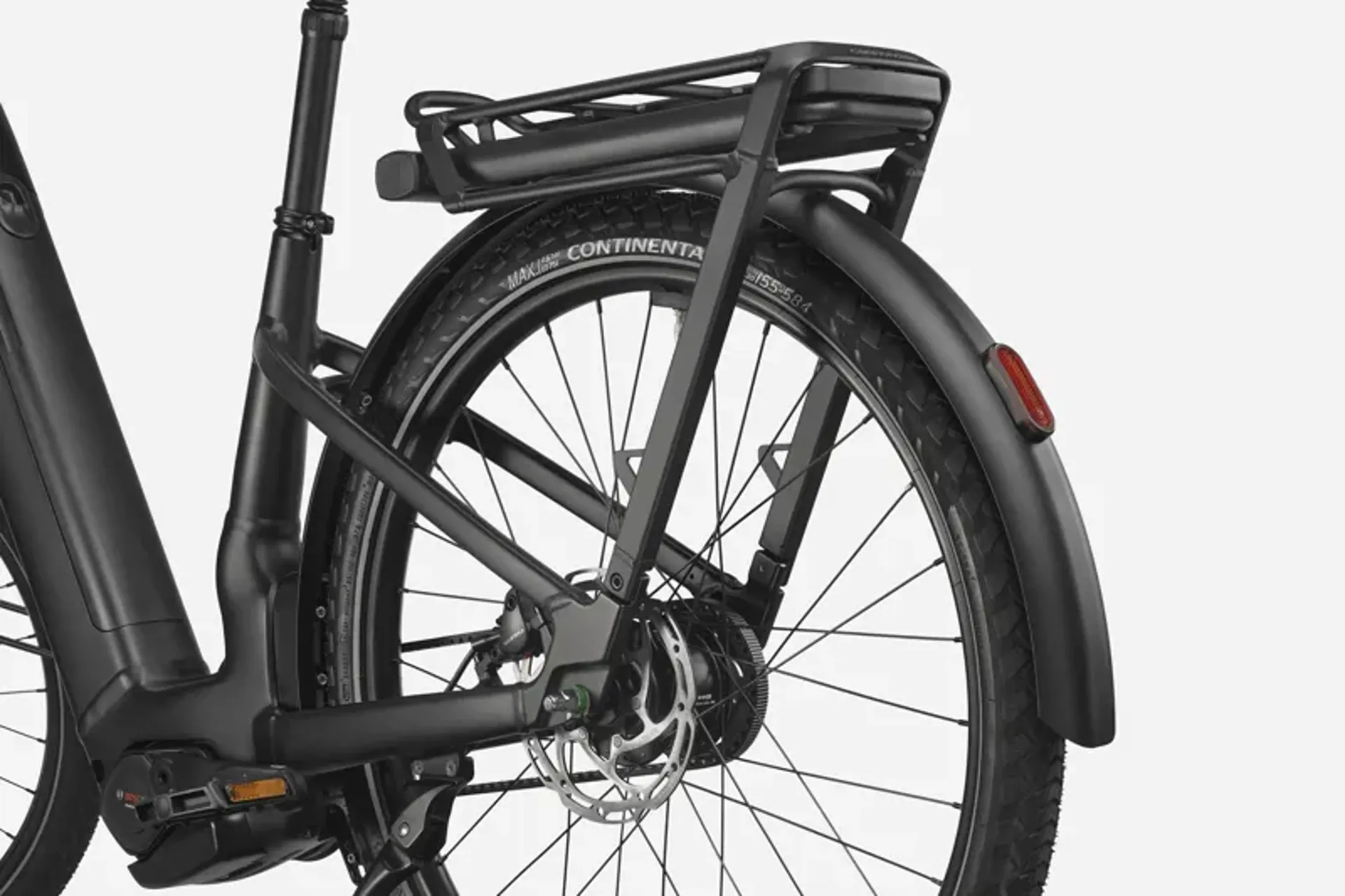

Extra 1

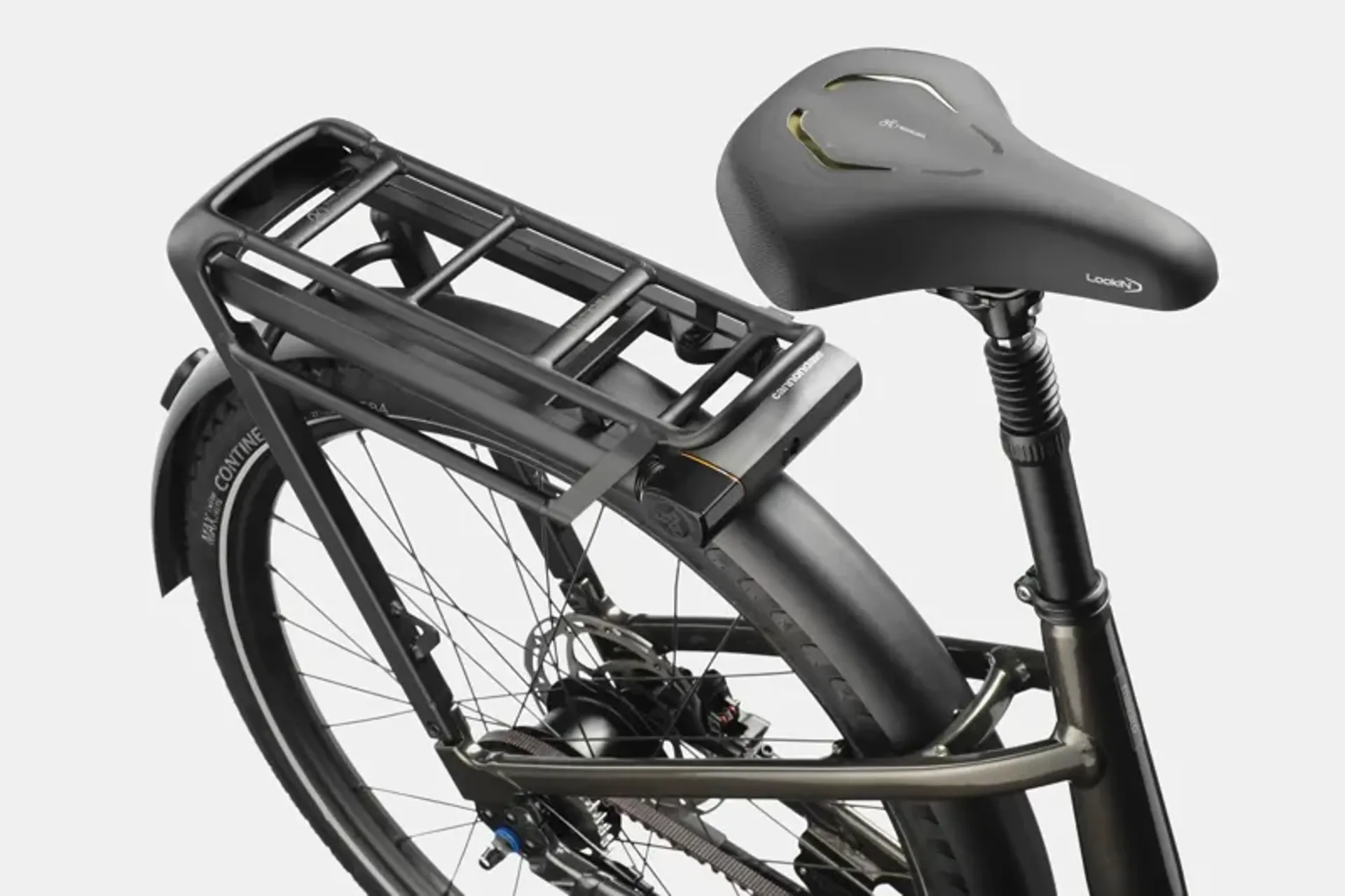

RackLock rear rack (27kg, Racktime SnapIt 2.0 & child seat compatible) with integrated extra-large Trelock U-Lock (key-matched with battery lock), Lezyne Foresite E350 front light and SuperNova TL3-Z rear light with integrated reflector, full-coverage fenders
